DeatschWerks DW810 Brushless 810lph In-Tank Brushless Fuel Pump w/ 9-1002 + Dual Speed Controller

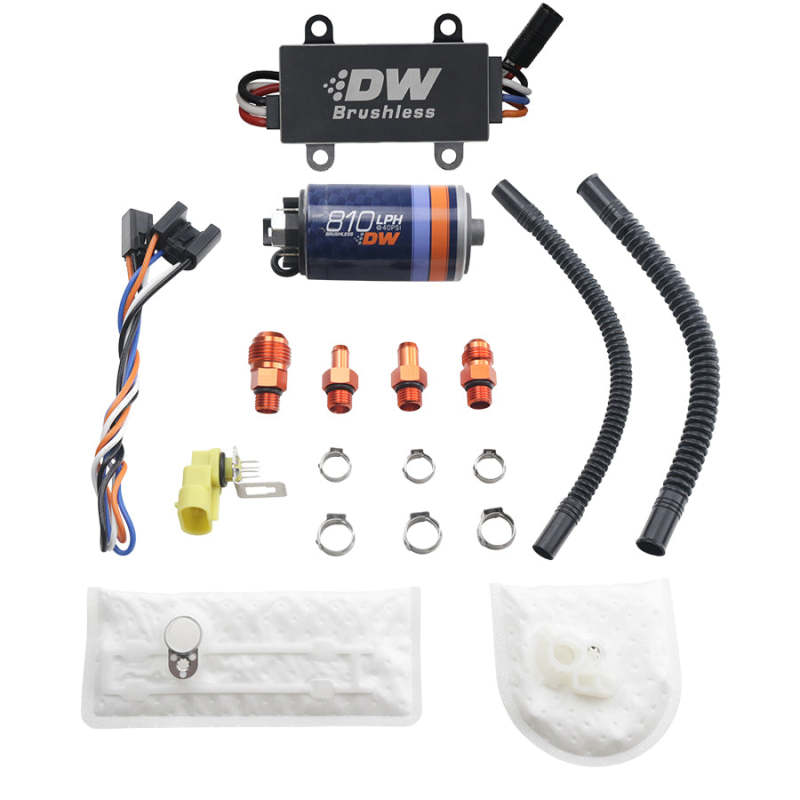

DW810 Brushless Series, 810lph in-tank brushless fuel pump w/ 9-1002 install kit + dual speed controller

Product Specifications Sheet
Installation Instructions

This pump is a 2 speed pump, which means under normal driving it runs at 55% duty cycle (Low Speed) and under full throttle (or any switched activation) it automatically bumps up to 100% duty cycle (High Speed)

High Speed (Full Throttle)

At 40psi = 810lph (3.5gpm) @13.5v
At 60psi = 745lph (3.25gpm) @13.5v
At 80psi = 682lph (3.0gpm) @13.5v

Low Speed (Cruising)

At 40psi = 445lph (1.95gpm) @13.5v
At 60psi = 410lph (1.8gpm) @13.5v
At 80psi = 375lph (1.65gpm) @13.5v

Outlet Fittings:
5/16", 3/8", -6AN and -8AN anodized fittings included

Inlet Fitting:
AN4 O-Ring Boss (7/16-20" SAE)
8.5mm ID, 11.8mm OD

• Compact size is optimized for in-tank use
• Universal bulkhead harness and fitment kit included
• Compatible with all fuels including Methanol and E100
• No brushes + No commutator = Ultimate Durability
